NSK BSF50115
Double-Row Bearings (BSBD Series)
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
BSF50115

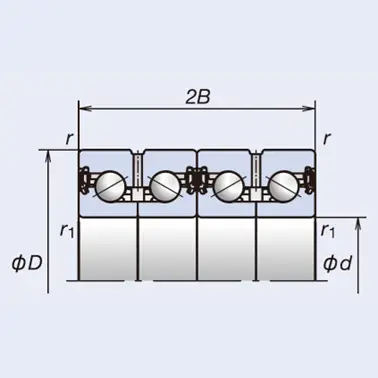

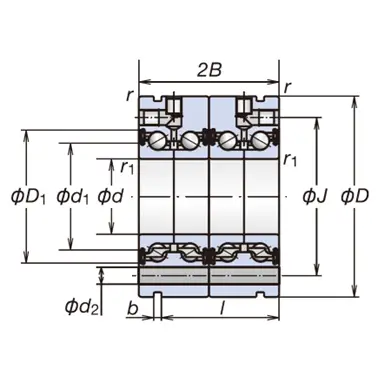

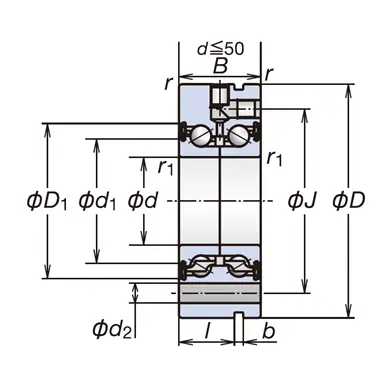

Boundary Dimensions
d
50
mm
Bore diameter
D
115
mm
Outside diameter
B
34
mm
Width
r(min.)
0.6
mm
Chamfer Dimension
r1(min.)
0.6
mm
Chamfer Dimension
Basic Load Ratings
Ca
57.5
kN
Basic Dynamic Load Rating
C0a
110
kN
Basic Static Load Rating
Speeds
Grease
2800
min-1
Limiting Speed
Dimensions
60°
Contact Angle
d1
70.1
mm
Shoulder Diameter
D1
82.2
mm
Shoulder/Recess Diameter
Performance
71.5
kN
Limiting Static Axial Load
