NSK C-UCFC210D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UCFC210D1
Included products
Bearing
Housing
FC210D1
Housing

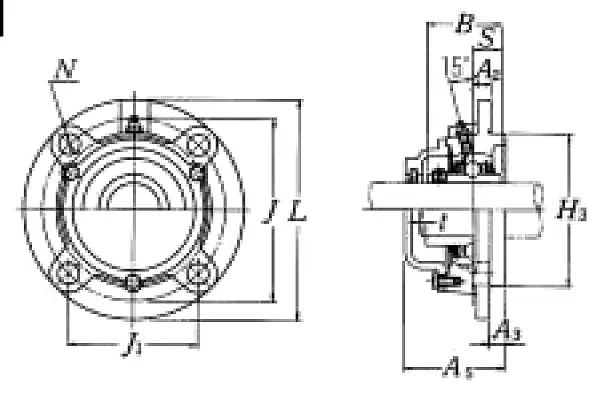

Nominal Dimensions
d
50
mm
Bore diameter
L,H
165
mm
Overall length
H3
110
mm
Outer diameter of Spigot Joint
J
138
mm
Pitch diameter of attachment bolts
J1
97.6
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A3
12
mm
Height of of Spigot Joint
A2
10
mm
Flange width
A1
29
mm
Flange width
A5
72
mm
Width including end cover
B,B1,B2
51.6
mm
Width of inner ring
t
3
mm
Clearance
S
19
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
35
kN
Basic dynamic load rating
C0r
23.2
kN
Basic static load rating
Mass
mass
3.6
kg
Mass approx.
