NSK C-UCFC212D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
C-UCFC212D1
Included products
Bearing
Housing
FC212D1
Housing

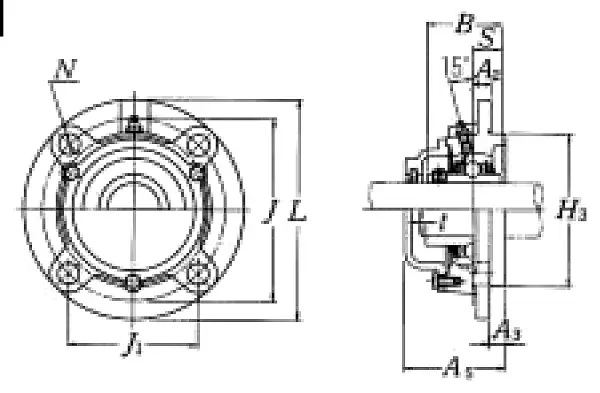

Nominal Dimensions
d
60
mm
Bore diameter
L,H
195
mm
Overall length
H3
135
mm
Outer diameter of Spigot Joint
J
160
mm
Pitch diameter of attachment bolts
J1
113.1
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A3
12
mm
Height of of Spigot Joint
A2
17
mm
Flange width
A1
38
mm
Flange width
A5
86
mm
Width including end cover
B,B1,B2
65.1
mm
Width of inner ring
t
4
mm
Clearance
S
25.4
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
52.5
kN
Basic dynamic load rating
C0r
36
kN
Basic static load rating
Mass
mass
5.9
kg
Mass approx.
