NSK C-UCT305D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UCT305D1
Included products
Bearing
Housing
T305D1
Housing

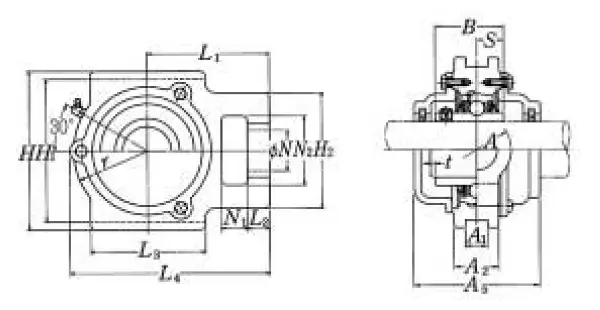

Nominal Dimensions
d
25
mm
Bore diameter
L,L4
122
mm
Overall length
L4
122
mm
Overall length
H2
62
mm
Height of attachment end
H
89
mm
Overall height
N2
36
mm
Height of attachment slot
N1
16
mm
Length of attachment slot
N
26
mm
Diameter of attachment bolt hole
L3
65
mm
Length of piloting groove
L2
14
mm
Length attachment end
L1
76
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
26
mm
Flange width
A1
12
mm
Flange width
r
46
mm
Housing radius
A5
80
mm
Width including end cover
t
2
mm
Clearance
A
36
mm
Overall width
H1
80
mm
Distance between bottoms of piloting grooves
B
38
mm
Width of inner ring
S
15
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
21.2
kN
Basic dynamic load rating
C0r
10.9
kN
Basic static load rating
Mass
mass
1.7
kg
Mass approx.
