NSK C-UCT311D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
Designations
C-UCT311D1
Included products
Bearing
Housing
T311D1
Housing

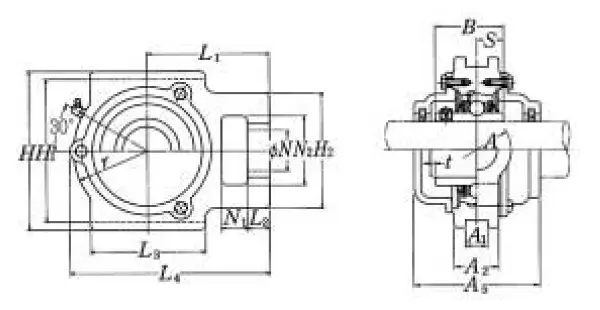

Nominal Dimensions
d
55
mm
Bore diameter
L,L4
211
mm
Overall length
L4
211
mm
Overall length
H2
105
mm
Height of attachment end
H
163
mm
Overall height
N2
66
mm
Height of attachment slot
N1
29
mm
Length of attachment slot
N
39
mm
Diameter of attachment bolt hole
L3
115
mm
Length of piloting groove
L2
23
mm
Length attachment end
L1
127
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
44
mm
Flange width
A1
22
mm
Flange width
r
80
mm
Housing radius
A5
125
mm
Width including end cover
t
4
mm
Clearance
A
66
mm
Overall width
H1
150
mm
Distance between bottoms of piloting grooves
B
66
mm
Width of inner ring
S
25
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
71.5
kN
Basic dynamic load rating
C0r
45
kN
Basic static load rating
Mass
mass
8.4
kg
Mass approx.
