NSK C-UCT318D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UCT318D1
Included products
Bearing
Housing
T318D1
Housing

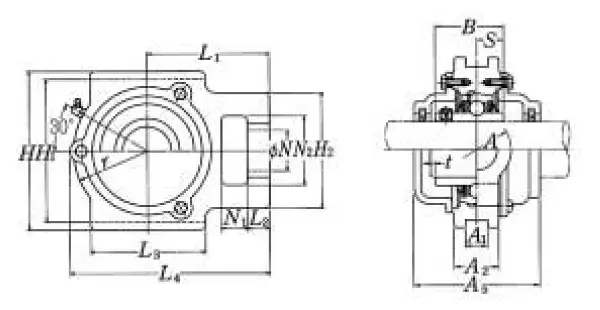

Nominal Dimensions
d
90
mm
Bore diameter
L,L4
317
mm
Overall length
L4
317
mm
Overall length
H2
160
mm
Height of attachment end
H
255
mm
Overall height
N2
106
mm
Height of attachment slot
N1
46
mm
Length of attachment slot
N
57
mm
Diameter of attachment bolt hole
L3
175
mm
Length of piloting groove
L2
32
mm
Length attachment end
L1
192
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
66
mm
Flange width
A1
32
mm
Flange width
r
120
mm
Housing radius
A5
170
mm
Width including end cover
t
5
mm
Clearance
A
110
mm
Overall width
H1
228
mm
Distance between bottoms of piloting grooves
B
96
mm
Width of inner ring
S
40
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
143
kN
Basic dynamic load rating
C0r
107
kN
Basic static load rating
Mass
mass
27
kg
Mass approx.
