NSK C-UCT319D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UCT319D1
Included products
Bearing
Housing
T319D1
Housing

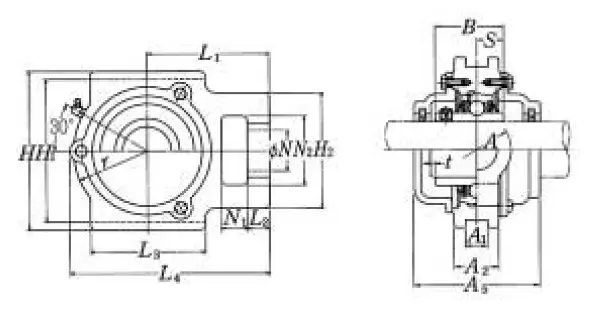

Nominal Dimensions
d
95
mm
Bore diameter
L,L4
327
mm
Overall length
L4
327
mm
Overall length
H2
165
mm
Height of attachment end
H
270
mm
Overall height
N2
106
mm
Height of attachment slot
N1
46
mm
Length of attachment slot
N
57
mm
Diameter of attachment bolt hole
L3
180
mm
Length of piloting groove
L2
33
mm
Length attachment end
L1
197
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
72
mm
Flange width
A1
35
mm
Flange width
r
125
mm
Housing radius
A5
180
mm
Width including end cover
t
5
mm
Clearance
A
110
mm
Overall width
H1
240
mm
Distance between bottoms of piloting grooves
B
103
mm
Width of inner ring
S
41
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
153
kN
Basic dynamic load rating
C0r
119
kN
Basic static load rating
Mass
mass
31
kg
Mass approx.
