NSK C-UCTX14D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
Designations
C-UCTX14D1
Included products
Bearing
Housing
TX14D1
Housing

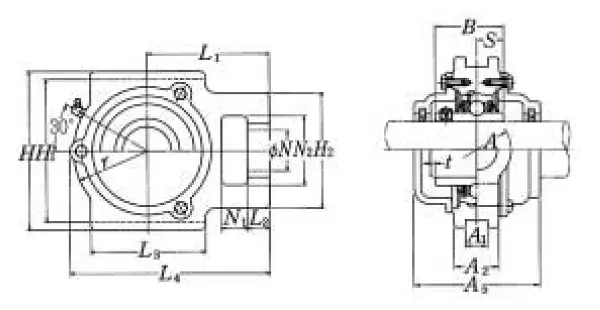

Nominal Dimensions
d
70
mm
Bore diameter
L,L4
232
mm
Overall length
L4
232
mm
Overall length
H2
111
mm
Height of attachment end
H
167
mm
Overall height
N2
70
mm
Height of attachment slot
N1
32
mm
Length of attachment slot
N
41
mm
Diameter of attachment bolt hole
L3
121
mm
Length of piloting groove
L2
23
mm
Length attachment end
L1
140
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
48
mm
Flange width
A1
26
mm
Flange width
r
92
mm
Housing radius
A5
135
mm
Width including end cover
t
4
mm
Clearance
A
70
mm
Overall width
H1
151
mm
Distance between bottoms of piloting grooves
B
77.8
mm
Width of inner ring
S
33.3
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
66
kN
Basic dynamic load rating
C0r
49.5
kN
Basic static load rating
Mass
mass
10
kg
Mass approx.
