NSK C-UKFC211D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UKFC211D1
Included products
Bearing
Housing
FC211D1
Housing
Associated products
Adapter sleeve

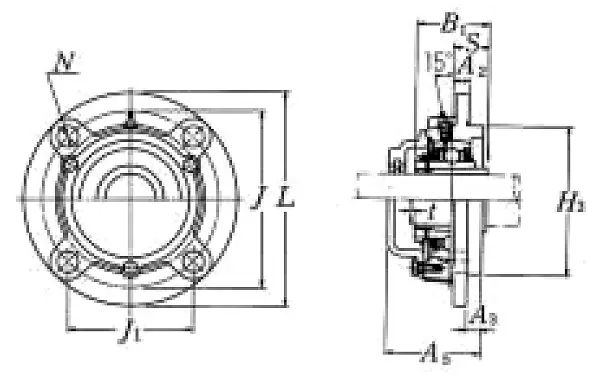

Nominal Dimensions
d
50
mm
Bore diameter
L,H
185
mm
Overall length
H3
125
mm
Outer diameter of Spigot Joint
J
150
mm
Pitch diameter of attachment bolts
J1
106.1
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A3
12
mm
Height of of Spigot Joint
A2
13
mm
Flange width
A1
32.5
mm
Flange width
A5
75
mm
Width including end cover
B,B1,B2
59
mm
Width of inner ring
F
64
mm
Diameter of housing abutment
t
4
mm
Clearance
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
43.5
kN
Basic dynamic load rating
C0r
29.2
kN
Basic static load rating
