NSK C-UKT320D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
C-UKT320D1
Included products
Bearing
Housing
T320D1
Housing
Associated products
Adapter sleeve

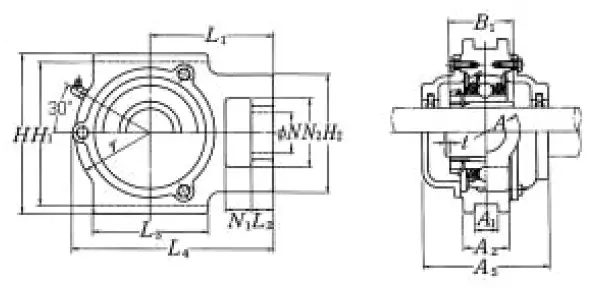

Nominal Dimensions
d
90
mm
Bore diameter
L,L4
350
mm
Overall length
L4
350
mm
Overall length
H2
175
mm
Height of attachment end
H
290
mm
Overall height
N2
115
mm
Height of attachment slot
N1
48
mm
Length of attachment slot
N
59
mm
Diameter of attachment bolt hole
L3
200
mm
Length of piloting groove
L2
200
mm
Length attachment end
L1
210
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
75
mm
Flange width
A1
35
mm
Flange width
r
135
mm
Housing radius
A5
190
mm
Width including end cover
t
5
mm
Clearance
A
120
mm
Overall width
H1
260
mm
Distance between bottoms of piloting grooves
B1
97
mm
Width of inner ring
Basic Load Ratings
Cr
173
kN
Basic dynamic load rating
C0r
141
kN
Basic static load rating
Mass
mass
39
kg
Mass approx.
