NSK CM-UCFC204D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCFC204D1
Included products
Bearing
Housing
FC204D1
Housing

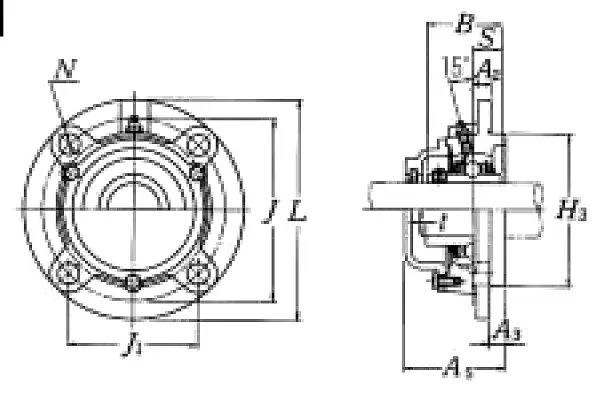

Nominal Dimensions
d
20
mm
Bore diameter
L,H
100
mm
Overall length
H3
62
mm
Outer diameter of Spigot Joint
J
78
mm
Pitch diameter of attachment bolts
J1
55.2
mm
Distance between attachment bolts
N
12
mm
Diameter of attachment bolt hole
A3
5
mm
Height of of Spigot Joint
A2
10
mm
Flange width
A1
20.5
mm
Flange width
A5
46
mm
Width including end cover
B,B1,B2
31
mm
Width of inner ring
t
2
mm
Clearance
S
12.7
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
12.8
kN
Basic dynamic load rating
C0r
6.65
kN
Basic static load rating
Mass
mass
0.9
kg
Mass approx.
