NSK CM-UCFC217D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCFC217D1
Included products
Bearing
Housing
FC217D1
Housing

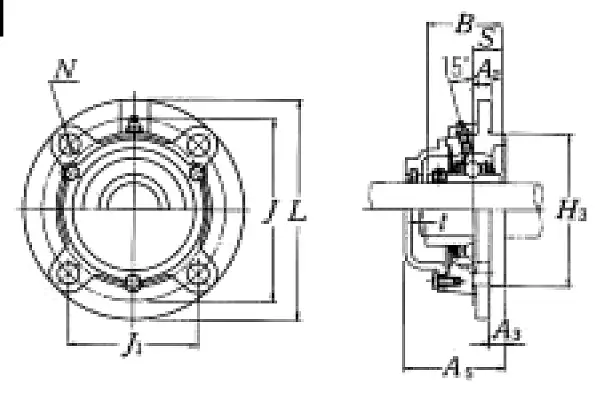

Nominal Dimensions
d
85
mm
Bore diameter
L,H
250
mm
Overall length
H3
180
mm
Outer diameter of Spigot Joint
J
208
mm
Pitch diameter of attachment bolts
J1
147.1
mm
Distance between attachment bolts
N
23
mm
Diameter of attachment bolt hole
A3
18
mm
Height of of Spigot Joint
A2
18
mm
Flange width
A1
45.5
mm
Flange width
A5
114
mm
Width including end cover
B,B1,B2
85.7
mm
Width of inner ring
t
5
mm
Clearance
S
34.1
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M20
Bolt size
Basic Load Ratings
Cr
83.5
kN
Basic dynamic load rating
C0r
64
kN
Basic static load rating
Mass
mass
12
kg
Mass approx.
