NSK CM-UCFS326D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCFS326D1
Included products
Bearing
Housing
FS326D1
Housing

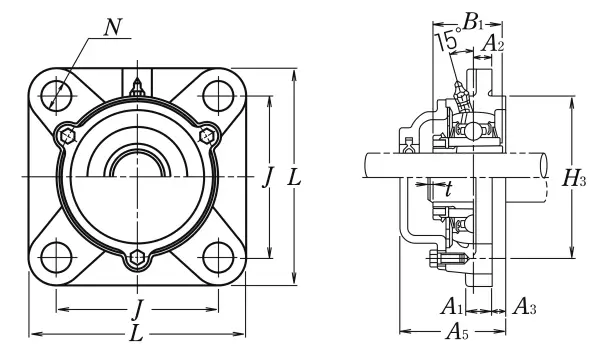

Nominal Dimensions
d
130
mm
Bore diameter
L
410
mm
Overall length
H3
360
mm
Outer diameter of Spigot Joint
J
320
mm
Distance between attachment bolts
A3
30
mm
Height of of Spigot Joint
A2
35
mm
Flange width
A1
45
mm
Flange width
A5
178
mm
Width including end cover
B,B1,B2
135
mm
Width of inner ring
t
6
mm
Clearance
S
54
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M36
Bolt size
Basic Load Ratings
Cr
229
kN
Basic dynamic load rating
C0r
214
kN
Basic static load rating
Mass
mass
77
kg
Mass approx.
