NSK UCF324D1
Square Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCF324D1
Included products
Bearing
Housing
F324D1
Housing

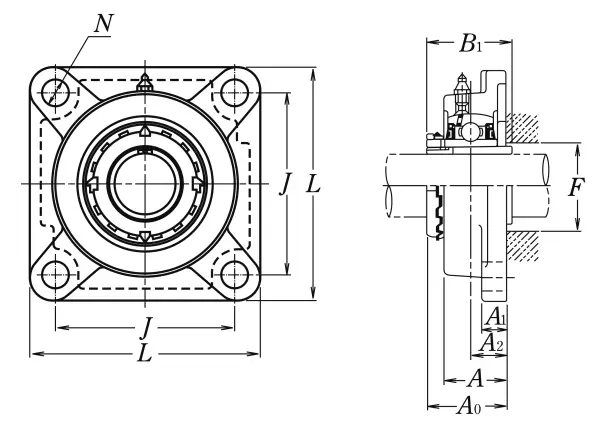

Nominal Dimensions
d
120
mm
Bore diameter
L
370
mm
Overall length
J
290
mm
Distance between attachment bolts
N
41
mm
Diameter of attachment bolt hole
A2
65
mm
Flange width
A1
40
mm
Flange width
A
110
mm
Base width
A0
140
mm
Overall width
B,B1,B2
126
mm
Width of inner ring
S
51
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M36
Bolt size
Basic Load Ratings
Cr
207
kN
Basic dynamic load rating
C0r
185
kN
Basic static load rating
Mass
mass
48
kg
Mass approx.
