NSK CM-UCT312D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UCT312D1
Included products
Bearing
Housing
T312D1
Housing

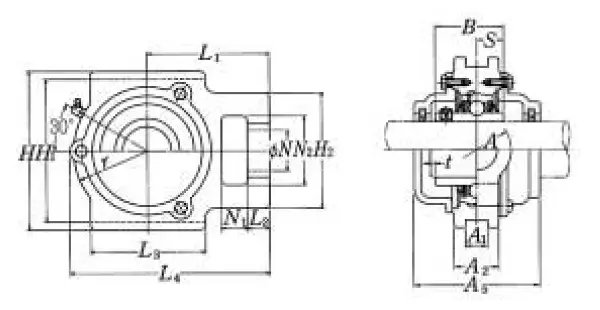

Nominal Dimensions
d
60
mm
Bore diameter
L,L4
227
mm
Overall length
L4
227
mm
Overall length
H2
113
mm
Height of attachment end
H
178
mm
Overall height
N2
71
mm
Height of attachment slot
N1
31
mm
Length of attachment slot
N
41
mm
Diameter of attachment bolt hole
L3
123
mm
Length of piloting groove
L2
25
mm
Length attachment end
L1
135
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
46
mm
Flange width
A1
22
mm
Flange width
r
85
mm
Housing radius
A5
135
mm
Width including end cover
t
4
mm
Clearance
A
71
mm
Overall width
H1
160
mm
Distance between bottoms of piloting grooves
B
71
mm
Width of inner ring
S
26
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
82
kN
Basic dynamic load rating
C0r
52
kN
Basic static load rating
Mass
mass
10
kg
Mass approx.
