NSK CM-UCT321D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCT321D1
Included products
Bearing
Housing
T321D1
Housing

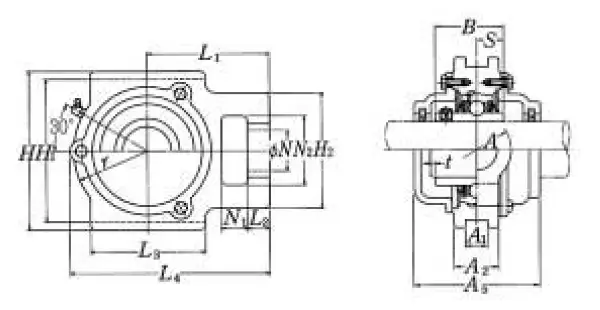

Nominal Dimensions
d
105
mm
Bore diameter
L,L4
359
mm
Overall length
L4
359
mm
Overall length
H2
175
mm
Height of attachment end
H
290
mm
Overall height
N2
115
mm
Height of attachment slot
N1
48
mm
Length of attachment slot
N
59
mm
Diameter of attachment bolt hole
L3
200
mm
Length of piloting groove
L2
34
mm
Length attachment end
L1
212
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
75
mm
Flange width
A1
35
mm
Flange width
r
135
mm
Housing radius
A5
195
mm
Width including end cover
t
5
mm
Clearance
A
120
mm
Overall width
H1
260
mm
Distance between bottoms of piloting grooves
B
112
mm
Width of inner ring
S
44
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
184
kN
Basic dynamic load rating
C0r
153
kN
Basic static load rating
Mass
mass
39
kg
Mass approx.
