NSK CM-UCT328D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCT328D1
Included products
Bearing
Housing
T328D1
Housing

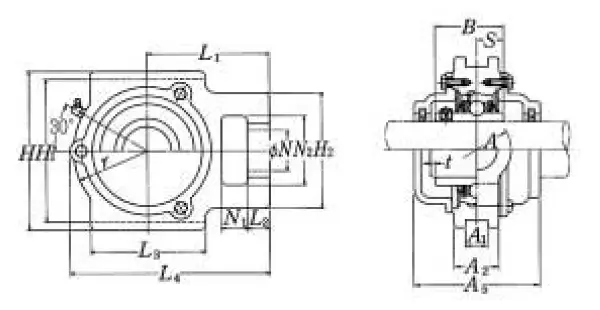

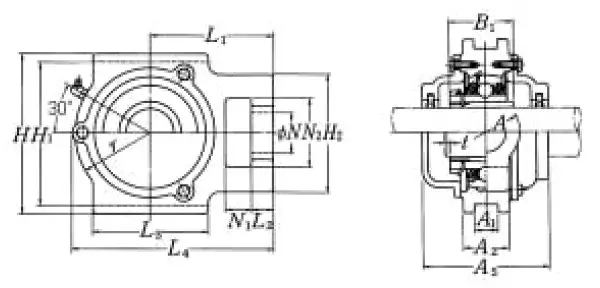

Nominal Dimensions
d
140
mm
Bore diameter
L,L4
519
mm
Overall length
L4
519
mm
Overall length
H2
230
mm
Height of attachment end
H
415
mm
Overall height
N2
160
mm
Height of attachment slot
N1
70
mm
Length of attachment slot
N
80
mm
Diameter of attachment bolt hole
L3
255
mm
Length of piloting groove
L2
52
mm
Length attachment end
L1
315
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
100
mm
Flange width
A1
50
mm
Flange width
r
200
mm
Housing radius
A5
235
mm
Width including end cover
t
6
mm
Clearance
A
155
mm
Overall width
H1
380
mm
Distance between bottoms of piloting grooves
B
145
mm
Width of inner ring
S
59
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
253
kN
Basic dynamic load rating
C0r
246
kN
Basic static load rating
Mass
mass
105
kg
Mass approx.
