NSK CM-UCTX05D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UCTX05D1
Included products
Bearing
Housing
TX05D1
Housing

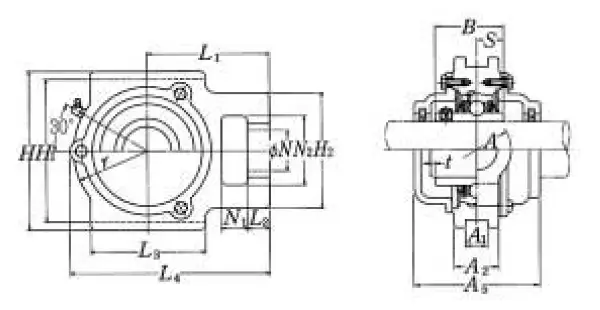

Nominal Dimensions
d
25
mm
Bore diameter
L,L4
113.5
mm
Overall length
L4
113.5
mm
Overall length
H2
56
mm
Height of attachment end
H
102
mm
Overall height
N2
37
mm
Height of attachment slot
N1
16
mm
Length of attachment slot
N
22
mm
Diameter of attachment bolt hole
L3
57
mm
Length of piloting groove
L2
12
mm
Length attachment end
L1
70
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
28
mm
Flange width
A1
12
mm
Flange width
r
43
mm
Housing radius
A5
75
mm
Width including end cover
t
2
mm
Clearance
A
37
mm
Overall width
H1
89
mm
Distance between bottoms of piloting grooves
B
38.1
mm
Width of inner ring
S
15.9
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
Mass
mass
1.8
kg
Mass approx.
