NSK CM-UKFC213D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UKFC213D1
Included products
Bearing
Housing
FC213D1
Housing
Associated products
Adapter sleeve

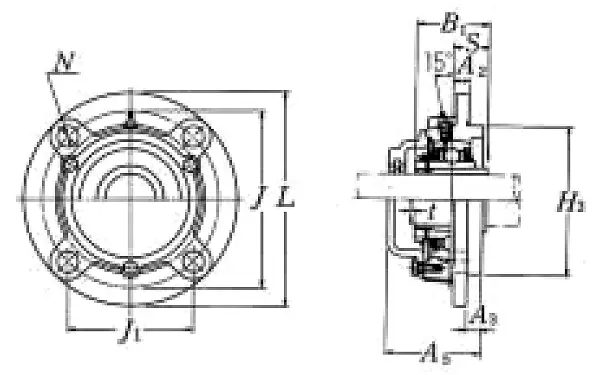

Nominal Dimensions
d
60
mm
Bore diameter
L,H
205
mm
Overall length
H3
145
mm
Outer diameter of Spigot Joint
J
170
mm
Pitch diameter of attachment bolts
J1
120.2
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A3
14
mm
Height of of Spigot Joint
A2
16
mm
Flange width
A1
38
mm
Flange width
A5
89.5
mm
Width including end cover
B,B1,B2
65
mm
Width of inner ring
F
74
mm
Diameter of housing abutment
t
4
mm
Clearance
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
57.5
kN
Basic dynamic load rating
C0r
40
kN
Basic static load rating
