NSK CM-UKT216D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
CM-UKT216D1
Included products
Bearing
Housing
T216D1
Housing
Associated products
Adapter sleeve

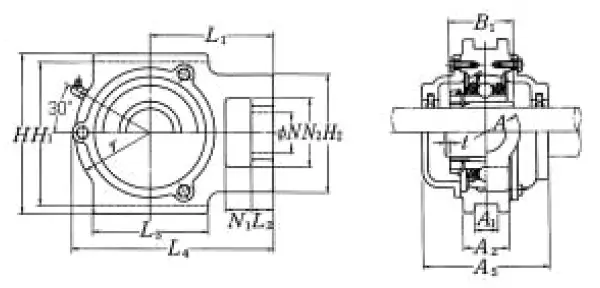

Nominal Dimensions
d
70
mm
Bore diameter
L,L4
235
mm
Overall length
L4
235
mm
Overall length
H2
111
mm
Height of attachment end
H
184
mm
Overall height
N2
70
mm
Height of attachment slot
N1
32
mm
Length of attachment slot
N
41
mm
Diameter of attachment bolt hole
L3
121
mm
Length of piloting groove
L2
121
mm
Length attachment end
L1
140
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
51
mm
Flange width
A1
26
mm
Flange width
r
95
mm
Housing radius
A5
145
mm
Width including end cover
t
4
mm
Clearance
A
70
mm
Overall width
H1
165
mm
Distance between bottoms of piloting grooves
B1
78
mm
Width of inner ring
Basic Load Ratings
Cr
72.5
kN
Basic dynamic load rating
C0r
53
kN
Basic static load rating
Mass
mass
12
kg
Mass approx.
