NSK CM-UKT310D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UKT310D1
Included products
Bearing
Housing
T310D1
Housing
Associated products
Adapter sleeve

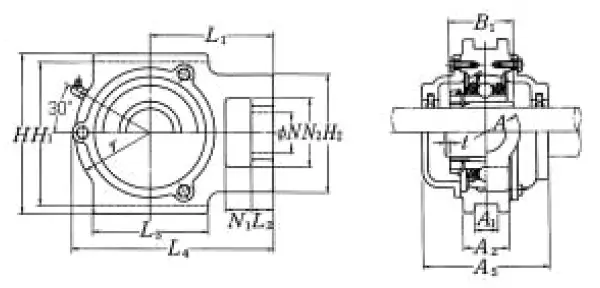

Nominal Dimensions
d
45
mm
Bore diameter
L,L4
197
mm
Overall length
L4
197
mm
Overall length
H2
98
mm
Height of attachment end
H
151
mm
Overall height
N2
61
mm
Height of attachment slot
N1
27
mm
Length of attachment slot
N
37
mm
Diameter of attachment bolt hole
L3
106
mm
Length of piloting groove
L2
22
mm
Length attachment end
L1
118
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
40
mm
Flange width
A1
20
mm
Flange width
r
74
mm
Housing radius
A5
120
mm
Width including end cover
t
3
mm
Clearance
A
61
mm
Overall width
H1
140
mm
Distance between bottoms of piloting grooves
B1
55
mm
Width of inner ring
Basic Load Ratings
Cr
62
kN
Basic dynamic load rating
C0r
38.5
kN
Basic static load rating
Mass
mass
5.1
kg
Mass approx.
