NSK CM-UKT316D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UKT316D1
Included products
Bearing
Housing
T316D1
Housing
Associated products
Adapter sleeve

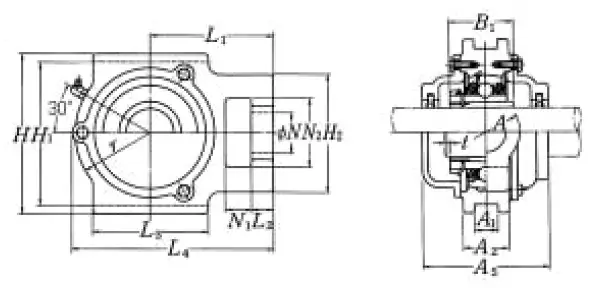

Nominal Dimensions
d
70
mm
Bore diameter
L,L4
287
mm
Overall length
L4
287
mm
Overall length
H2
150
mm
Height of attachment end
H
230
mm
Overall height
N2
98
mm
Height of attachment slot
N1
42
mm
Length of attachment slot
N
53
mm
Diameter of attachment bolt hole
L3
160
mm
Length of piloting groove
L2
160
mm
Length attachment end
L1
174
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
60
mm
Flange width
A1
30
mm
Flange width
r
108
mm
Housing radius
A5
155
mm
Width including end cover
t
4
mm
Clearance
A
102
mm
Overall width
H1
204
mm
Distance between bottoms of piloting grooves
B1
78
mm
Width of inner ring
Basic Load Ratings
Cr
123
kN
Basic dynamic load rating
C0r
86.5
kN
Basic static load rating
Mass
mass
21
kg
Mass approx.
