NSK CM-UKTX11D1
Take-up Units
(BRAND)：NSK
(Availability)：In Stock
Designations
CM-UKTX11D1
Included products
Bearing
Housing
TX11D1
Housing
Associated products
Adapter sleeve

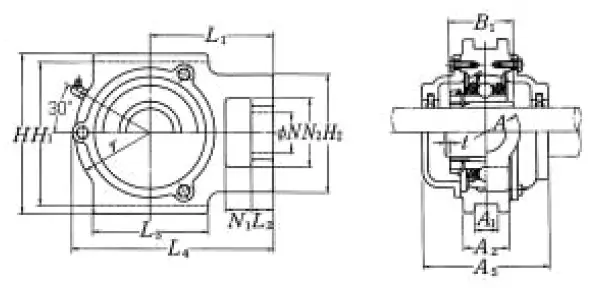

Nominal Dimensions
d
50
mm
Bore diameter
L,L4
194
mm
Overall length
L4
194
mm
Overall length
H2
102
mm
Height of attachment end
H
146
mm
Overall height
N2
64
mm
Height of attachment slot
N1
32
mm
Length of attachment slot
N
35
mm
Diameter of attachment bolt hole
L3
102
mm
Length of piloting groove
L2
21
mm
Length attachment end
L1
119
mm
Distance from attachment end face to centre line of spherical seat diameter
A2
44
mm
Flange width
A1
22
mm
Flange width
r
75
mm
Housing radius
A5
115
mm
Width including end cover
t
4
mm
Clearance
A
64
mm
Overall width
H1
130
mm
Distance between bottoms of piloting grooves
B1
59
mm
Width of inner ring
Basic Load Ratings
Cr
52.5
kN
Basic dynamic load rating
C0r
36
kN
Basic static load rating
Mass
mass
5.1
kg
Mass approx.
