NSK EN8

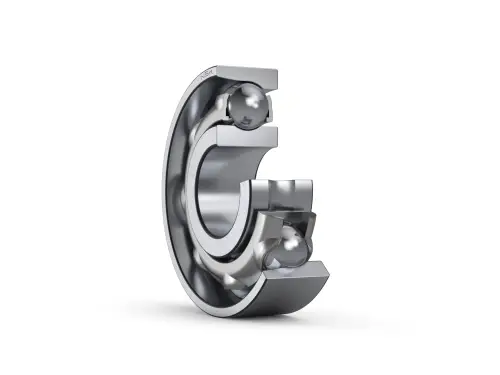

Magneto Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
EN8
Boundary Dimensions
d
8
mm
Bore diameter
D
24
mm
Outside diameter
B,C,T
7
mm
Width
r (min.)
0.3
mm
Chamfer dimension
r1 (min.)
0.15
mm
Chamfer dimension
Basic Load Ratings
Cr
3750
N
Basic dynamic load rating
C0r
650
N
Basic static load rating
Speeds
Grease
28000
min-1
Grease lubrication
Oil (Oil-bath)
34000
min-1
Oil-bath lubrication

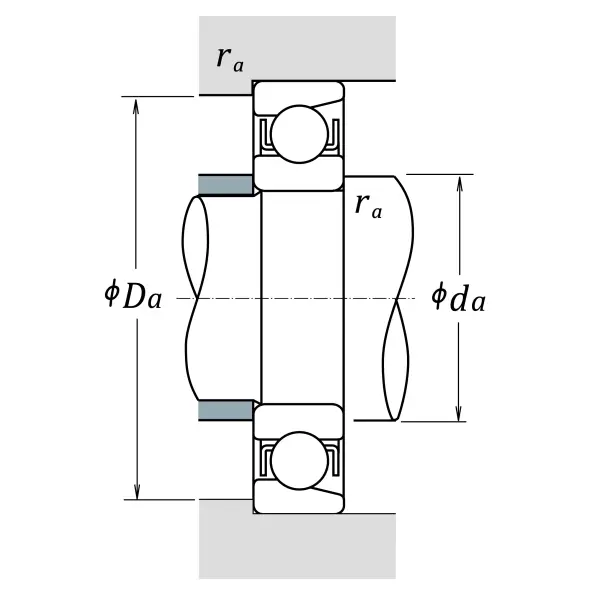

da (min.)
10
mm
Diameter of shaft abutment
Da (max.)
22
mm
Diameter of housing abutment
ra (max.)
0.3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
Mass approx.
0.014
kg
Mass approx.
