NSK F699ZZ1
Extra Small Ball Bearings and Miniature Ball Bearings Metric Series With Flamge
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Detailed data of
F699ZZ1
Designations
F699ZZ1
Boundary Dimensions
d
9
mm
Bore diameter
D
20
mm
Outside diameter
B
6
mm
Width
D1,2
23
mm
Flange diameter
C1,2
1.5
mm
Flange width
r1 (min.)
0.3
mm
Chamfer dimension
Basic Load Ratings
Cr
1890
N
Basic dynamic load rating
C0r
840
N
Basic static load rating
Speeds
Grease
34000
min-1
Grease lubrication

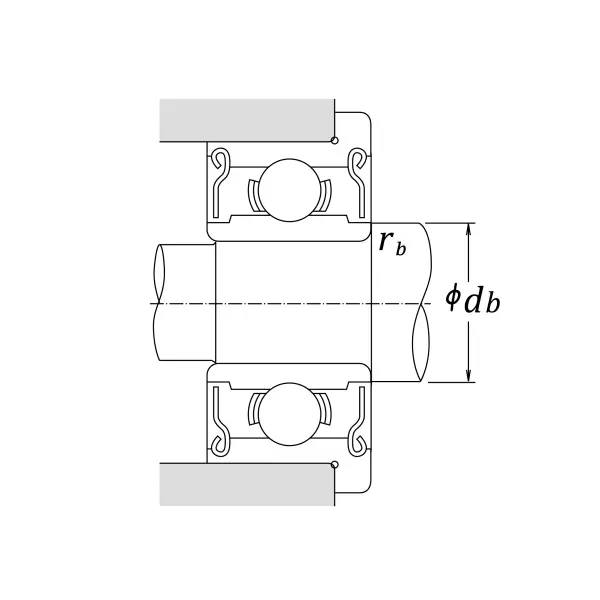

db (max.)
12
mm
Diameter of shaft abutment
rb (max.)
0.3
mm
Radius of shaft or housing fillet
Abutment and Fillet Dimensions
z
10
Number of Balls
Dw
2.381
mm
Ball Diameter
