NSK H3064
Adapter
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
H3064
Associated products
Adapter Sleeve
A3064
Adapter Sleeve
Nut
Stopper

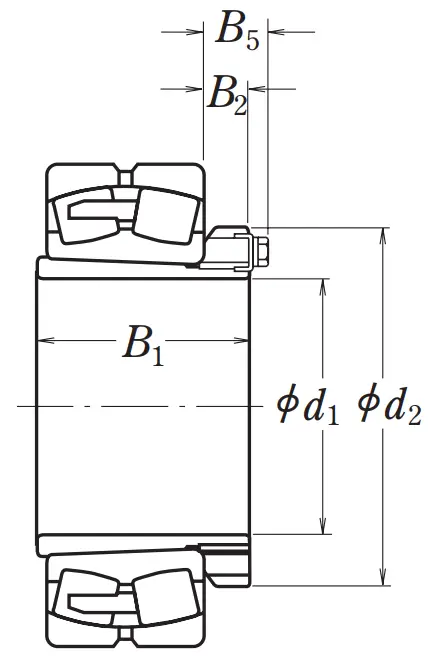

Dimensions
d1
300
mm
Shaft diameter
d
320
mm
Nominal bore diameter
B1
171
mm
Width
d2
380
mm
Outside diameter lock nut
B2
42
mm
Width lock nut including lock washer
B5
55
mm
Width lock nut including stopper
Abutment and Fillet Dimensions
A(min.)
72
mm
Internal clearance of outer ring from side face to housing
K(min.)
450
mm
Diameter of housing abutment
de(min.)
334
mm
Diameter of abutment
b(min.)
13
mm
Internal clearance of inner ring from side face to shaft
Mass
Mass
24.5
kg
Mass (approx.)
