NSK H3068
Adapter
(BRAND)：NSK
(Availability)：In Stock
Designations
H3068
Associated products
Adapter Sleeve
A3068
Adapter Sleeve
Nut
Stopper

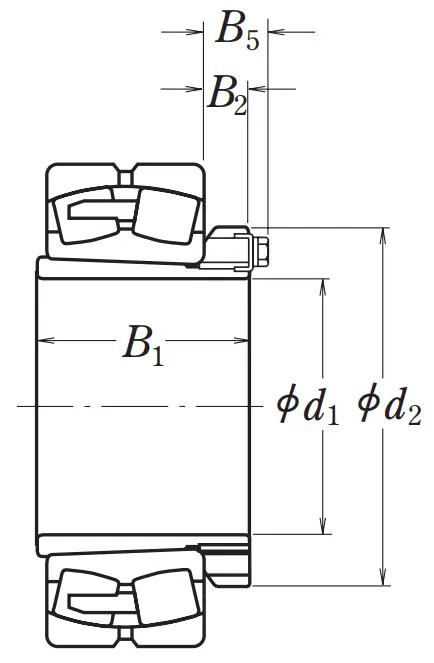

Dimensions
d1
320
mm
Shaft diameter
d
340
mm
Nominal bore diameter
B1
187
mm
Width
d2
400
mm
Outside diameter lock nut
B2
45
mm
Width lock nut including lock washer
B5
58
mm
Width lock nut including stopper
Abutment and Fillet Dimensions
A(min.)
75
mm
Internal clearance of outer ring from side face to housing
K(min.)
490
mm
Diameter of housing abutment
de(min.)
355
mm
Diameter of abutment
b(min.)
14
mm
Internal clearance of inner ring from side face to shaft
Mass
Mass
28.5
kg
Mass (approx.)
