NSK H3076
Adapter
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
H3076
Associated products
Adapter Sleeve
A3076
Adapter Sleeve
Nut
Stopper

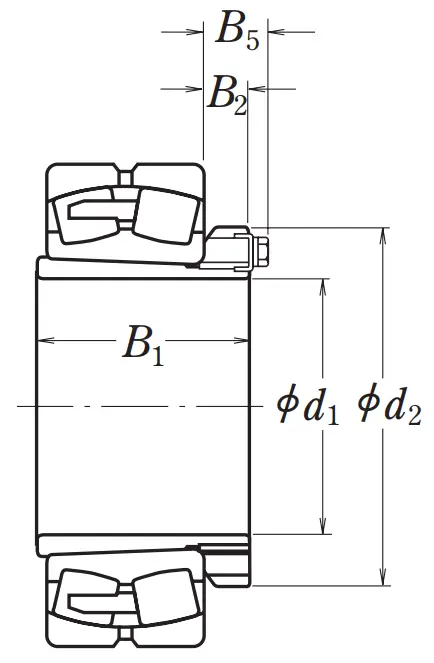

Dimensions
d1
360
mm
Shaft diameter
d
380
mm
Nominal bore diameter
B1
193
mm
Width
d2
450
mm
Outside diameter lock nut
B2
48
mm
Width lock nut including lock washer
B5
62
mm
Width lock nut including stopper
Abutment and Fillet Dimensions
A(min.)
82
mm
Internal clearance of outer ring from side face to housing
K(min.)
540
mm
Diameter of housing abutment
de(min.)
396
mm
Diameter of abutment
b(min.)
15
mm
Internal clearance of inner ring from side face to shaft
Mass
Mass
36
kg
Mass (approx.)
