NSK H3144
Adapter
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
H3144
Associated products
Adapter Sleeve
A3144
Adapter Sleeve
Nut
Stopper

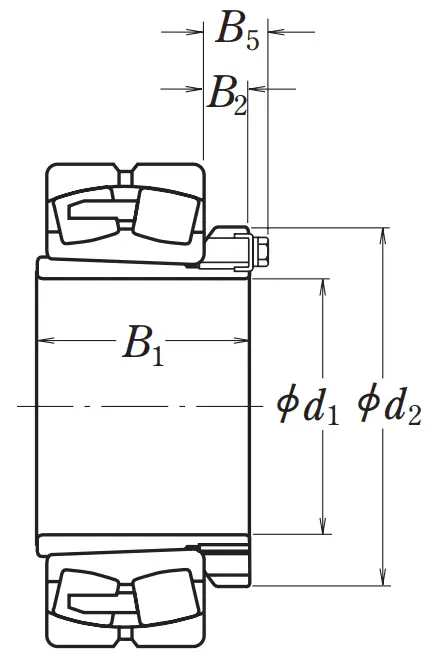

Dimensions
d1
200
mm
Shaft diameter
d
220
mm
Nominal bore diameter
B1
158
mm
Width
d2
280
mm
Outside diameter lock nut
B2
32
mm
Width lock nut including lock washer
B5
44
mm
Width lock nut including stopper
Abutment and Fillet Dimensions
A(min.)
55
mm
Internal clearance of outer ring from side face to housing
K(min.)
320
mm
Diameter of housing abutment
de(min.)
233
mm
Diameter of abutment
b(min.)
10
mm
Internal clearance of inner ring from side face to shaft
Mass
Mass
14.5
kg
Mass (approx.)
