NSK H3160
Adapter
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
H3160
Associated products
Adapter Sleeve
A3160
Adapter Sleeve
Nut
Stopper

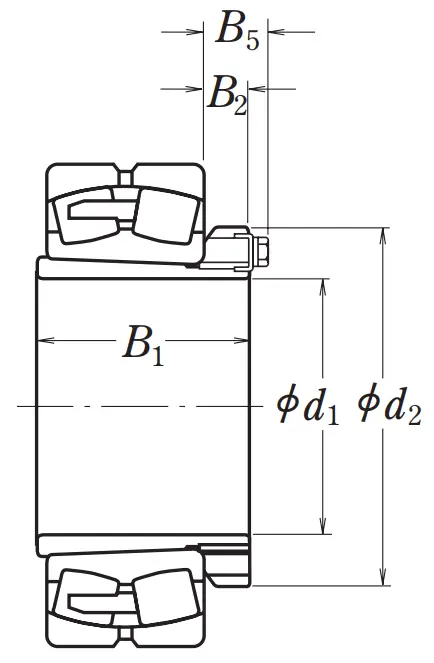

Dimensions
d1
280
mm
Shaft diameter
d
300
mm
Nominal bore diameter
B1
208
mm
Width
d2
380
mm
Outside diameter lock nut
B2
40
mm
Width lock nut including lock washer
B5
53
mm
Width lock nut including stopper
Abutment and Fillet Dimensions
A(min.)
69
mm
Internal clearance of outer ring from side face to housing
K(min.)
430
mm
Diameter of housing abutment
de(min.)
317
mm
Diameter of abutment
b(min.)
32
mm
Internal clearance of inner ring from side face to shaft
Mass
Mass
30
kg
Mass (approx.)
