NSK H3276
Adapter
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
H3276
Associated products
Adapter Sleeve
A3276
Adapter Sleeve
Nut
Stopper

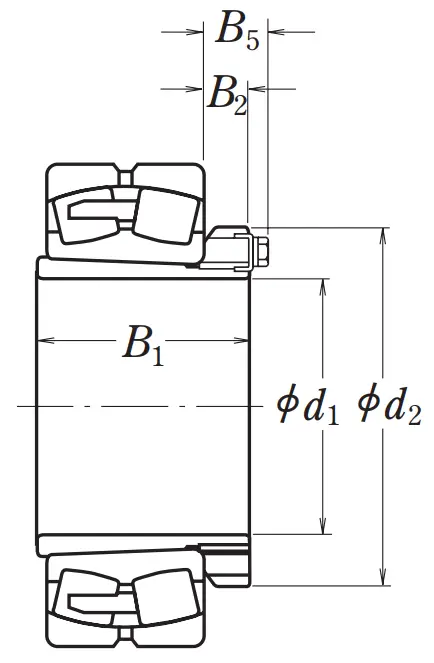

Dimensions
d1
360
mm
Shaft diameter
d
380
mm
Nominal bore diameter
B1
310
mm
Width
d2
490
mm
Outside diameter lock nut
B2
60
mm
Width lock nut including lock washer
B5
77
mm
Width lock nut including stopper
Abutment and Fillet Dimensions
A(min.)
82
mm
Internal clearance of outer ring from side face to housing
K(min.)
540
mm
Diameter of housing abutment
de(min.)
405
mm
Diameter of abutment
b(min.)
15
mm
Internal clearance of inner ring from side face to shaft
Mass
Mass
69.5
kg
Mass (approx.)
