NSK H3280
Adapter
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
H3280
Associated products
Adapter Sleeve
A3280
Adapter Sleeve
Nut
Stopper

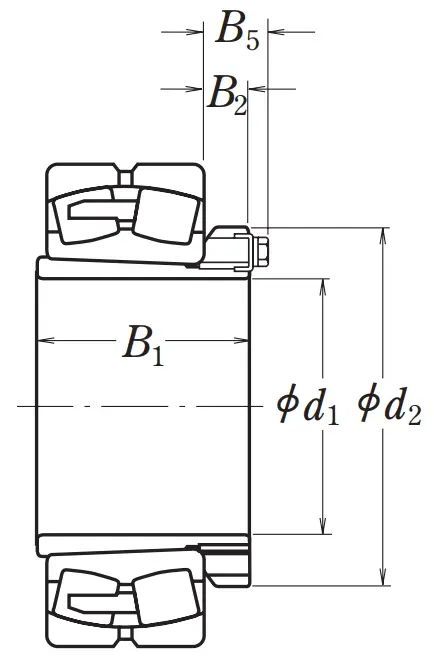

Dimensions
d1
380
mm
Shaft diameter
d
400
mm
Nominal bore diameter
B1
328
mm
Width
d2
520
mm
Outside diameter lock nut
B2
62
mm
Width lock nut including lock washer
B5
82
mm
Width lock nut including stopper
Abutment and Fillet Dimensions
A(min.)
86
mm
Internal clearance of outer ring from side face to housing
K(min.)
580
mm
Diameter of housing abutment
de(min.)
427
mm
Diameter of abutment
b(min.)
15
mm
Internal clearance of inner ring from side face to shaft
Mass
Mass
81
kg
Mass (approx.)
