NSK H3948
Adapter
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
H3948
Associated products
Adapter Sleeve
A3948
Adapter Sleeve
Nut
Stopper
AL48
Stopper

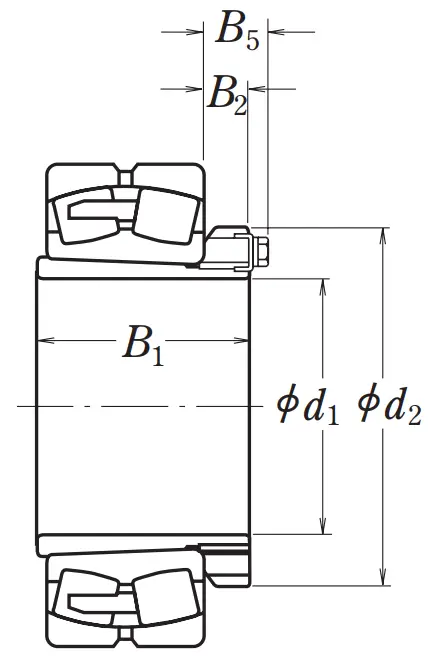

Dimensions
d1
220
mm
Shaft diameter
d
240
mm
Nominal bore diameter
B1
101
mm
Width
d2
290
mm
Outside diameter lock nut
B2
34
mm
Width lock nut including lock washer
B5
46
mm
Width lock nut including stopper
Abutment and Fillet Dimensions
A(min.)
60
mm
Internal clearance of outer ring from side face to housing
K(min.)
300
mm
Diameter of housing abutment
de(min.)
251
mm
Diameter of abutment
b(min.)
11
mm
Internal clearance of inner ring from side face to shaft
Mass
Mass
11.2
kg
Mass (approx.)
