NSK H3968
Adapter
(BRAND)：NSK
(Availability)：In Stock
Designations
H3968
Associated products
Adapter Sleeve
A3968
Adapter Sleeve
Nut
Stopper

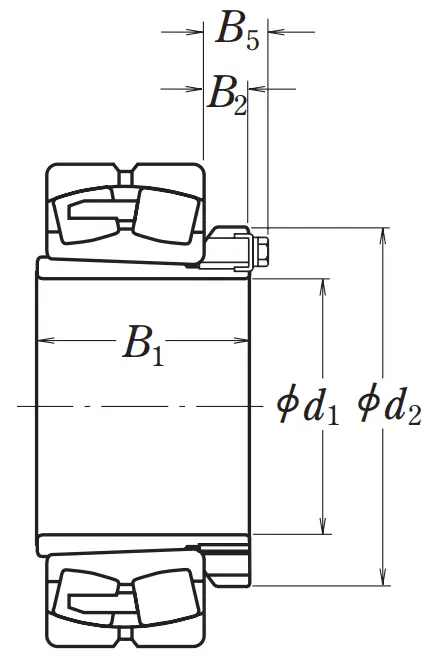

Dimensions
d1
320
mm
Shaft diameter
d
340
mm
Nominal bore diameter
B1
144
mm
Width
d2
400
mm
Outside diameter lock nut
B2
45
mm
Width lock nut including lock washer
B5
58
mm
Width lock nut including stopper
Abutment and Fillet Dimensions
A(min.)
75
mm
Internal clearance of outer ring from side face to housing
K(min.)
430
mm
Diameter of housing abutment
de(min.)
354
mm
Diameter of abutment
b(min.)
14
mm
Internal clearance of inner ring from side face to shaft
Mass
Mass
24.6
kg
Mass (approx.)
