NSK H3980
Adapter
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
H3980
Associated products
Adapter Sleeve
A3980
Adapter Sleeve
Nut
Stopper

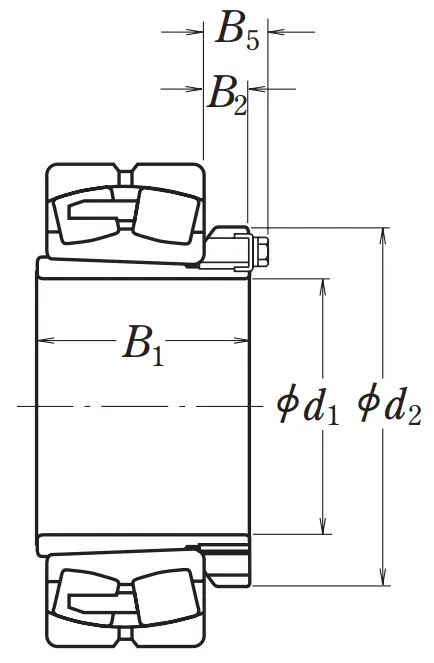

Dimensions
d1
380
mm
Shaft diameter
d
400
mm
Nominal bore diameter
B1
168
mm
Width
d2
470
mm
Outside diameter lock nut
B2
52
mm
Width lock nut including lock washer
B5
66
mm
Width lock nut including stopper
Abutment and Fillet Dimensions
A(min.)
86
mm
Internal clearance of outer ring from side face to housing
K(min.)
500
mm
Diameter of housing abutment
de(min.)
417
mm
Diameter of abutment
b(min.)
15
mm
Internal clearance of inner ring from side face to shaft
Mass
Mass
35.2
kg
Mass (approx.)
