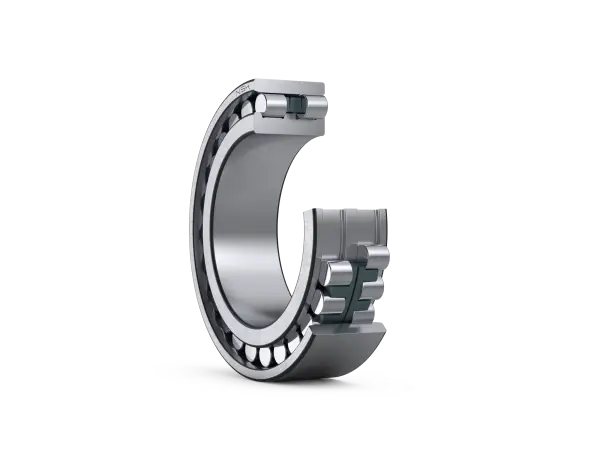

NSK NN3007TB
Double-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
NN3007TB

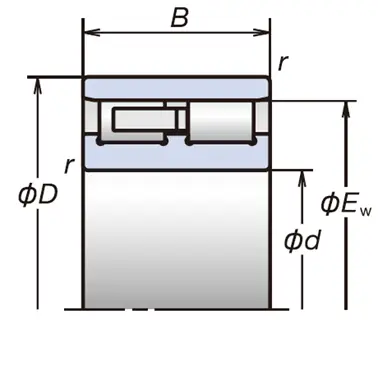

Boundary Dimensions
NN: Inner ring rib type
Bearing Type
d
35
mm
Bore diameter
D
62
mm
Outside diameter
B
20
mm
Width
r(min.)
1
mm
Chamfer Dimension
Basic Load Ratings
Cr
39.5
kN
Basic Dynamic Load Rating
C0r
50.0
kN
Basic Static Load Rating
Speeds
Grease
17600
min-1
Limiting Speed
Oil (Oil-air)
20700
min-1
Limiting Speed
Dimensions
Ew
55
mm
Roller Circumscribed Circle Diameters
s
1.3
mm
Axial Displacement
Abutment and Fillet Dimensions
da(min.)
40
mm
Diameter of Shaft Abutment
d1a(min.)
41
mm
Diameter of Shaft Abutment
Da(min.)
56
mm
Diameter of Housing Abutment
Da(max.)
57
mm
Diameter of Housing Abutment
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
