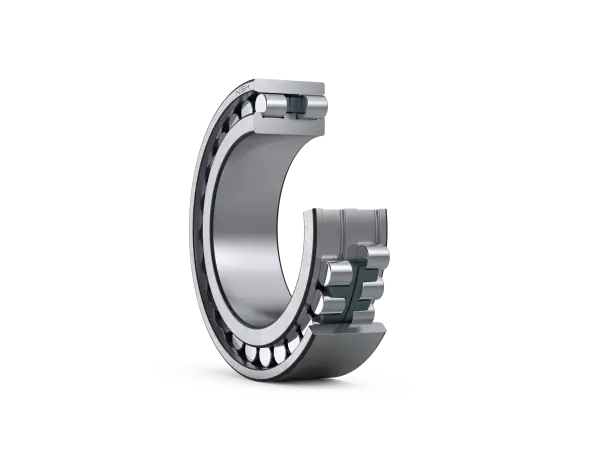

NSK NN3007ZTB
Double-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
NN3007ZTB

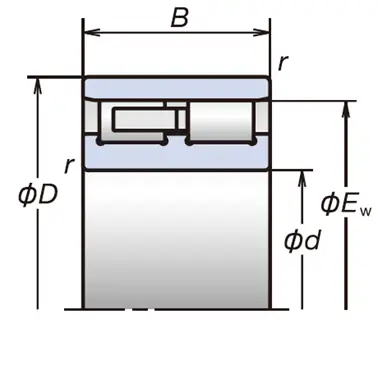

Boundary Dimensions
NN: Inner ring rib type
Bearing Type
d
35
mm
Bore diameter
D
62
mm
Outside diameter
B
20
mm
Width
r(min.)
1
mm
Chamfer Dimension
Basic Load Ratings
Cr
23.3
kN
Basic Dynamic Load Rating
C0r
25.0
kN
Basic Static Load Rating
Speeds
Grease
18400
min-1
Limiting Speed
Oil (Oil-air)
24500
min-1
Limiting Speed
Dimensions
Ew
55
mm
Roller Circumscribed Circle Diameters
s
1.3
mm
Axial Displacement
Abutment and Fillet Dimensions
da(min.)
40
mm
Diameter of Shaft Abutment
d1a(min.)
41
mm
Diameter of Shaft Abutment
Da(min.)
56
mm
Diameter of Housing Abutment
Da(max.)
57
mm
Diameter of Housing Abutment
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
