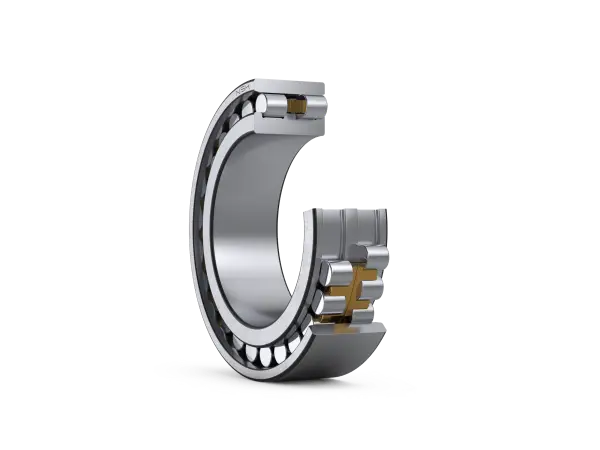

NSK NN3013MB
Double-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
NN3013MB

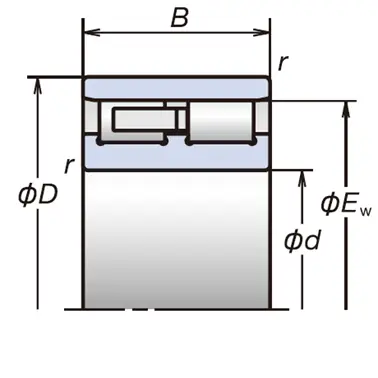

Boundary Dimensions
NN: Inner ring rib type
Bearing Type
d
65
mm
Bore diameter
D
100
mm
Outside diameter
B
26
mm
Width
r(min.)
1.1
mm
Chamfer Dimension
Basic Load Ratings
Cr
88.5
kN
Basic Dynamic Load Rating
C0r
116
kN
Basic Static Load Rating
Speeds
Grease
9100
min-1
Limiting Speed
Oil (Oil-air)
11000
min-1
Limiting Speed
Dimensions
Ew
91
mm
Roller Circumscribed Circle Diameters
s
1.4
mm
Axial Displacement
Abutment and Fillet Dimensions
da(min.)
71.5
mm
Diameter of Shaft Abutment
d1a(min.)
72
mm
Diameter of Shaft Abutment
Da(min.)
93
mm
Diameter of Housing Abutment
Da(max.)
93.5
mm
Diameter of Housing Abutment
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
