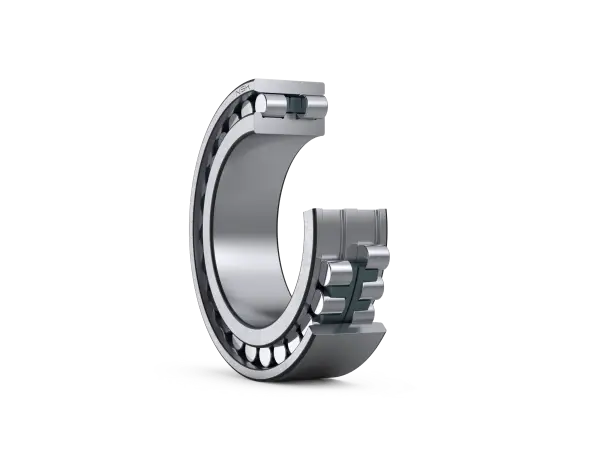

NSK NN3014ZTB
Double-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
NN3014ZTB

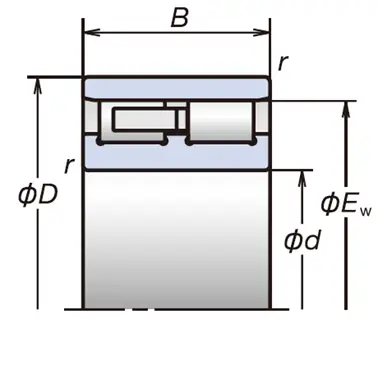

Boundary Dimensions
NN: Inner ring rib type
Bearing Type
d
70
mm
Bore diameter
D
110
mm
Outside diameter
B
30
mm
Width
r(min.)
1.1
mm
Chamfer Dimension
Basic Load Ratings
Cr
66.5
kN
Basic Dynamic Load Rating
C0r
74.0
kN
Basic Static Load Rating
Speeds
Grease
9900
min-1
Limiting Speed
Oil (Oil-air)
13200
min-1
Limiting Speed
Dimensions
Ew
100
mm
Roller Circumscribed Circle Diameters
s
1.2
mm
Axial Displacement
Abutment and Fillet Dimensions
da(min.)
76.5
mm
Diameter of Shaft Abutment
d1a(min.)
77
mm
Diameter of Shaft Abutment
Da(min.)
102
mm
Diameter of Housing Abutment
Da(max.)
103.5
mm
Diameter of Housing Abutment
ra(max.)
1
mm
Radius of Shaft or Housing Fillet
