NSK NNU4992
Double-Row Cylindrical Roller Bearings
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
NNU4992

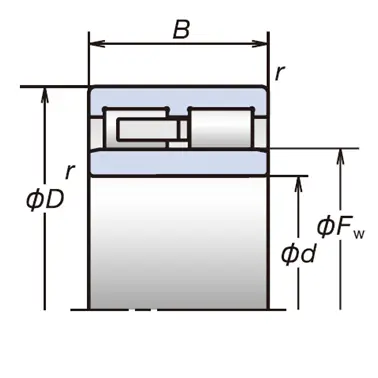

Boundary Dimensions
NNU: Outer ring rib type
Bearing Type
d
460
mm
Bore diameter
D
620
mm
Outside diameter
B
160
mm
Width
r(min.)
4
mm
Chamfer Dimension
Basic Load Ratings
Cr
2400
kN
Basic Dynamic Load Rating
C0r
6200
kN
Basic Static Load Rating
Speeds
Grease
1100
min-1
Limiting Speed
Oil (Oil-air)
1300
min-1
Limiting Speed
Dimensions
Ew
507
mm
Roller Circumscribed Circle Diameters
s
3.3
mm
Axial Displacement

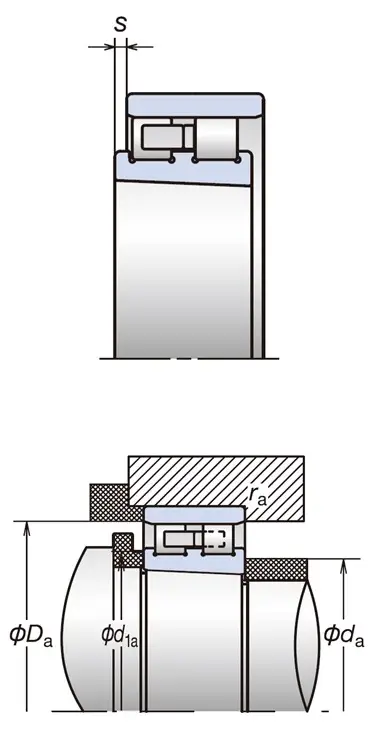

Abutment and Fillet Dimensions
da(min.)
476
mm
Diameter of Shaft Abutment
d1a(min.)
489
mm
Diameter of Shaft Abutment
Da(max.)
604
mm
Diameter of Housing Abutment
ra(max.)
3
mm
Radius of Shaft or Housing Fillet
