NSK UCC308D1
Cartridge Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCC308D1
Included products
Bearing
Housing
C308D1
Housing

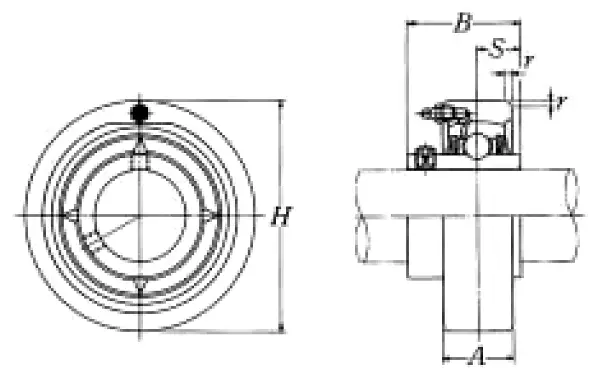

Nominal Dimensions
d
40
mm
Bore diameter
A
34
mm
Base width
r
3
mm
Housing Chamfer dimension
H
120
mm
Outer diameter
B,B1
52
mm
Width of inner ring
B
52
mm
Width of inner ring
S
19
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
40.5
kN
Basic dynamic load rating
C0r
24
kN
Basic static load rating
Mass
mass
2.1
kg
Mass approx.
