NSK UCC315D1
Cartridge Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCC315D1
Included products
Bearing
Housing
C315D1
Housing

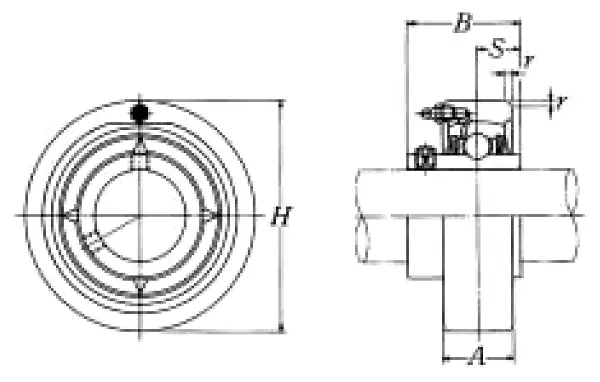

Nominal Dimensions
d
75
mm
Bore diameter
A
55
mm
Base width
r
4
mm
Housing Chamfer dimension
H
190
mm
Outer diameter
B,B1
82
mm
Width of inner ring
B
82
mm
Width of inner ring
S
32
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
113
kN
Basic dynamic load rating
C0r
77
kN
Basic static load rating
Mass
mass
7.9
kg
Mass approx.
