NSK UCCX06D1
Cartridge Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCCX06D1
Included products
Bearing
Housing
CX06D1
Housing

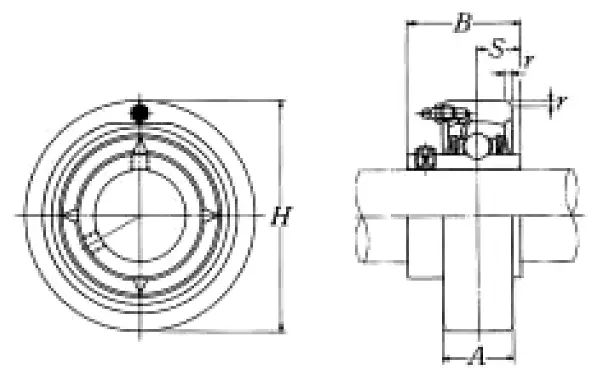

Nominal Dimensions
d
30
mm
Bore diameter
A
30
mm
Base width
r
2.5
mm
Housing Chamfer dimension
H
100
mm
Outer diameter
B,B1
42.9
mm
Width of inner ring
B
42.9
mm
Width of inner ring
S
17.5
mm
Distance from Opposite side face of locking device to raceway centre
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
mass
1.6
kg
Mass approx.
