NSK UCFCX05D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
Designations
UCFCX05D1
Included products
Bearing
Housing
FCX05D1
Housing

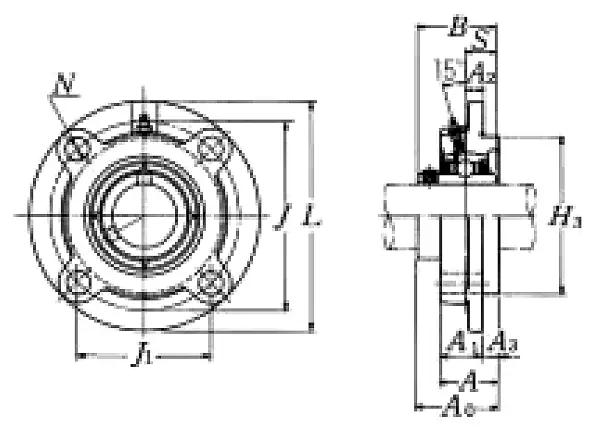

Nominal Dimensions
d
25
mm
Bore diameter
L,H
111
mm
Overall length
H3
76
mm
Outer diameter of Spigot Joint
J
92
mm
Pitch diameter of attachment bolts
J1
65.1
mm
Distance between attachment bolts
N
9.5
mm
Diameter of attachment bolt hole
A3
6
mm
Height of of Spigot Joint
A2
10
mm
Flange width
A1
24
mm
Flange width
A
30
mm
Base width
A0
38.2
mm
Overall width
B,B1,B2
38.1
mm
Width of inner ring
S
15.9
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M8
Bolt size
Basic Load Ratings
Cr
19.5
kN
Basic dynamic load rating
C0r
11.3
kN
Basic static load rating
Mass
mass
1.2
kg
Mass approx.
