NSK UCFCX06D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCFCX06D1
Included products
Bearing
Housing
FCX06D1
Housing

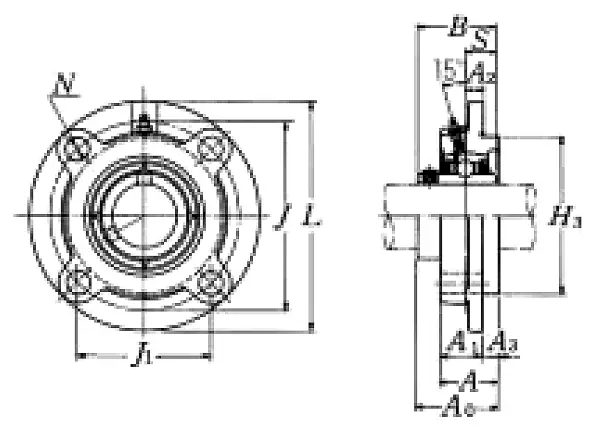

Nominal Dimensions
d
30
mm
Bore diameter
L,H
127
mm
Overall length
H3
85
mm
Outer diameter of Spigot Joint
J
105
mm
Pitch diameter of attachment bolts
J1
74.2
mm
Distance between attachment bolts
N
12
mm
Diameter of attachment bolt hole
A3
9.5
mm
Height of of Spigot Joint
A2
8
mm
Flange width
A1
22.5
mm
Flange width
A
32
mm
Base width
A0
42.9
mm
Overall width
B,B1,B2
42.9
mm
Width of inner ring
S
17.5
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M10
Bolt size
Basic Load Ratings
Cr
25.7
kN
Basic dynamic load rating
C0r
15.3
kN
Basic static load rating
Mass
mass
1.7
kg
Mass approx.
