NSK UCFCX11D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCFCX11D1
Included products
Bearing
Housing
FCX11D1
Housing

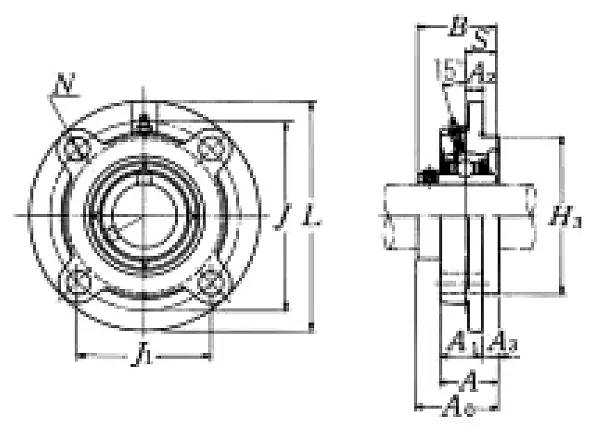

Nominal Dimensions
d
55
mm
Bore diameter
L,H
180
mm
Overall length
H3
127
mm
Outer diameter of Spigot Joint
J
152
mm
Pitch diameter of attachment bolts
J1
107.5
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A3
22
mm
Height of of Spigot Joint
A2
4
mm
Flange width
A1
26
mm
Flange width
A
48
mm
Base width
A0
65.7
mm
Overall width
B,B1,B2
65.1
mm
Width of inner ring
S
25.4
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
52.5
kN
Basic dynamic load rating
C0r
36
kN
Basic static load rating
Mass
mass
4.2
kg
Mass approx.
