NSK UCFCX13D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCFCX13D1
Included products
Bearing
Housing
FCX13D1
Housing

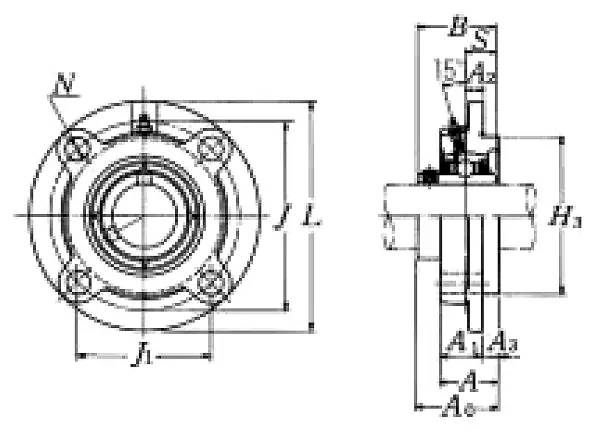

Nominal Dimensions
d
65
mm
Bore diameter
L,H
194
mm
Overall length
H3
140
mm
Outer diameter of Spigot Joint
J
165
mm
Pitch diameter of attachment bolts
J1
116.7
mm
Distance between attachment bolts
N
16
mm
Diameter of attachment bolt hole
A3
20
mm
Height of of Spigot Joint
A2
11
mm
Flange width
A1
33
mm
Flange width
A
53
mm
Base width
A0
75.4
mm
Overall width
B,B1,B2
74.6
mm
Width of inner ring
S
30.2
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M14
Bolt size
Basic Load Ratings
Cr
62
kN
Basic dynamic load rating
C0r
44
kN
Basic static load rating
Mass
mass
5.7
kg
Mass approx.
