NSK UCFCX15D1
Round Flanged Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCFCX15D1
Included products
Bearing
Housing
FCX15D1
Housing

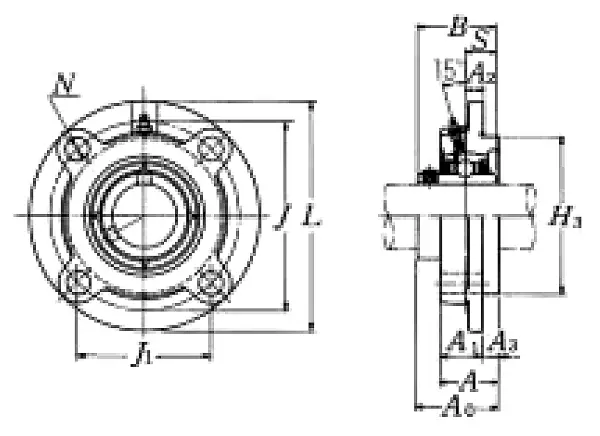

Nominal Dimensions
d
75
mm
Bore diameter
L,H
222
mm
Overall length
H3
164
mm
Outer diameter of Spigot Joint
J
190
mm
Pitch diameter of attachment bolts
J1
134.4
mm
Distance between attachment bolts
N
19
mm
Diameter of attachment bolt hole
A3
22
mm
Height of of Spigot Joint
A2
12
mm
Flange width
A1
35
mm
Flange width
A
57
mm
Base width
A0
83.3
mm
Overall width
B,B1,B2
82.6
mm
Width of inner ring
S
33.3
mm
Distance from Opposite side face of locking device to raceway centre
Mounting information
G
M16
Bolt size
Basic Load Ratings
Cr
72.5
kN
Basic dynamic load rating
C0r
53
kN
Basic static load rating
Mass
mass
8
kg
Mass approx.
