NSK UCHB210D1
Hanger Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCHB210D1
Included products
Bearing
Housing
HB210D1
Housing

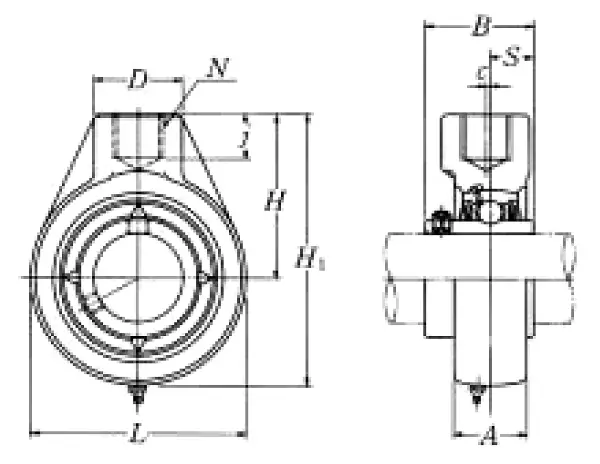

Nominal Dimensions
d
50
mm
Bore diameter
H
83
mm
Height of spherical seat centre
A
37
mm
Base width
D
48
mm
Body Diameter
L
118
mm
Outerside Diameter
c
5
mm
Misalignment
H1
142
mm
Overall Height
B
51.6
mm
Width of inner ring
S
19
mm
Distance from Opposite side face of locking device to raceway centre
j
21
mm
Thread length
Mounting information
N
Rp1
Set screw
Basic Load Ratings
Cr
35
kN
Basic dynamic load rating
C0r
23.2
kN
Basic static load rating
Mass
mass
2.2
kg
Mass approx.
