NSK UCHB211D1
Hanger Units
(BRAND)：NSK
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Designations
UCHB211D1
Included products
Bearing
Housing
HB211D1
Housing

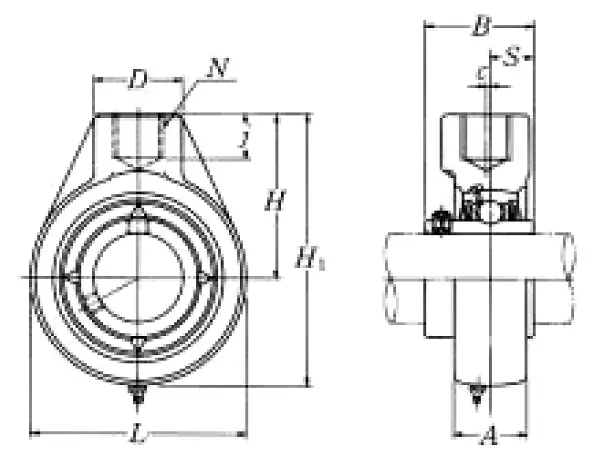

Nominal Dimensions
d
55
mm
Bore diameter
H
95
mm
Height of spherical seat centre
A
38
mm
Base width
D
60
mm
Body Diameter
L
126
mm
Outerside Diameter
c
7
mm
Misalignment
H1
158
mm
Overall Height
B
55.6
mm
Width of inner ring
S
22.2
mm
Distance from Opposite side face of locking device to raceway centre
j
25
mm
Thread length
Mounting information
N
Rp11_4
Set screw
Basic Load Ratings
Cr
43.5
kN
Basic dynamic load rating
C0r
29.2
kN
Basic static load rating
Mass
mass
2.8
kg
Mass approx.
